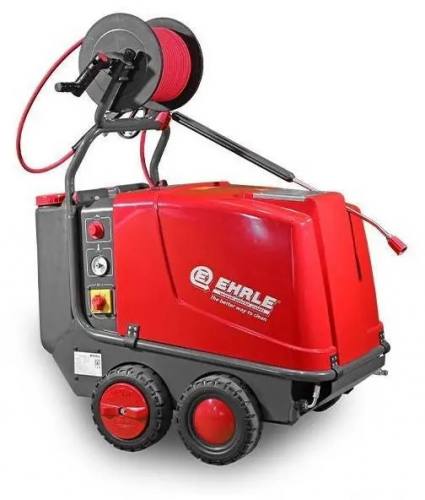

Ehrle HDE 840 18Kw Electric heated hot water pressure washer
The EHRLE HDE840 18kW Hose Reel Electric Hot Water
High Pressure Cleaner is a high-performance industrial cleaning
solution, offering all the power and reliability of the standard model with the
added convenience of an integrated hose reel system.
Supplied with a 20 metre high pressure hose reel and
an additional turbo lance, this version is ideal for users
requiring extended reach and improved cleaning efficiency. Delivering an
operating pressure of 30 to 140 bar with a maximum pressure
of 160 bar, and a flow rate of 300 to 720 litres per hour,
the HDE840 is built for heavy-duty commercial and industrial cleaning tasks.
Powered by a 400V 3 phase supply, the machine
features an 18kW electric heating system and a 65
litre stainless steel boiler with pre-heating and buffer storage,
ensuring fast and consistent hot water output between 30°C and 80°C.
With its robust corrosion-resistant chassis,
impact-resistant ABS cover, and large rubber wheels, this machine is designed
to withstand tough working environments while providing excellent mobility and
ease of use.
Key Features
- Hose reel version supplied with 20 metre high pressure hose
- Includes additional turbo lance for enhanced cleaning performance
- Electrically heated industrial hot water high pressure cleaner
- Voltage: 3/N/PE/AC/50Hz/400V
- Operating pressure: 30 to 140 bar / 3 to 14 MPa
- Maximum pressure: 160 bar / 16 MPa
- Water flow rate: 300 to 720 litres per hour
- Nozzle size: 045
- Heating power: 18kW
- Hot water temperature: 30°C to 80°C
- Pump speed: 1400 rpm
- Connected load: 22.8kW
- Power supply requirement: 32 Amp
- Electrical protection: 3 x 32A slow
- Water supply separation compliant with DIN EN 1717 Class 4
- Chemical supply in high pressure jet with metering valve
- 65 litre stainless steel hot water boiler with pre-heating and buffer storage
- Triplex piston pump with chrome nickel hot water resistant pump head
- High performance ceramic pistons
- Stainless steel valves and leakage return system
- Etronic I control system with start-stop, standby heating and low water cut-off
- Infinitely variable pressure and water quantity regulation
- 2 integrated detergent tanks with 20 litre capacity
- Durable corrosion-resistant chassis with ABS cover
- 4 large rubber wheels with patented 2-way brake system
- Storage for accessories and removable ergonomic drawbar
- 7.5 metre electrical connection cable
Provides additional cleaning power for stubborn contamination and hard surfaces.
The EHRLE HDE840 Hose Reel Version is designed for professionals who need greater flexibility and efficiency on-site. The integrated 20m hose reel reduces setup time and improves workflow, while the included turbo lance delivers more aggressive cleaning power for stubborn dirt and heavy contamination.
This makes it particularly well suited for transport, agriculture, industrial workshops, and food production environments, where both reach and cleaning performance are critical. Combined with EHRLE’s robust engineering and electric hot water system, this machine offers long-term reliability and consistent results.
