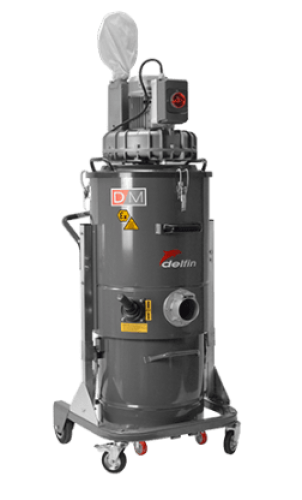

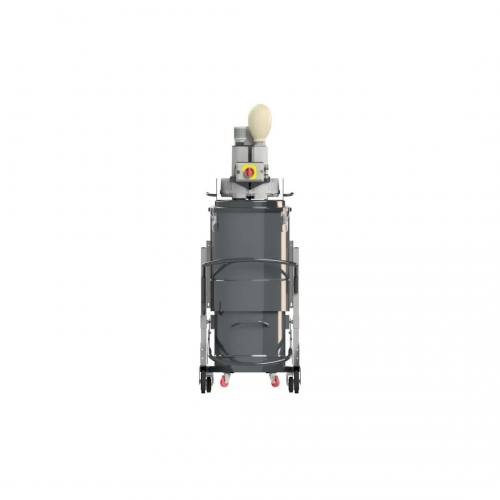

Delfin ZFR EL Z22 Atex Vacuum Cleaner
The ZEFIRO EL TR is the three-phase industrial vacuum cleaner for all applications in the version with automatic start via remote control, designed for integration on production plants and centralized suction systems. The integrated remote control system allows the vacuum cleaner to be started and stopped automatically in sync with the production line machinery, eliminating the need for manual intervention.
The 4 kW side channel blower with large surface antistatic filter and selfclean system guarantees high and reliable performance for continuous work cycles. The TR system allows integration with PLC and SCADA systems for fully automated suction management. The robust painted steel structure with large quick-release container is designed for use in intensive industrial environments.
Ideal for automated production lines, centralized suction systems and wherever automatic synchronization of suction with production processes brings significant operational advantages. Available in ATEX zone 22 version for production lines in classified areas. Compatible with the complete range of Delfin accessories and options.
ZONE 22 COMPACT ATEX CERTIFIED INDUSTRIAL VACUUM
High surface area antistatic filtration with handy manual filter cleaning system built in, grounding and powerful side channel blower. All you need for the safe cleaning and vacuuming of dust and liquids in environments with a rare risk of explosion.
| Atex zones | ATEX Z22 | |
| Marking | Ex II 3D Ex tc IIIB T135°C X Dc | |
| Voltage | V - Hz | 230-50 1~ / 400-50 3~ |
| Power | kW | 1.8 / 2.2 |
| Electrical protection | IP | 55 |
| Max water lift | mmH₂O | 1800 / 3000 |
| Max air flow | m³/h | 250 / 330 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 74 |
| Filter Type | Star | |
| Surface - Diameter | cm²-mm | 20.000-500 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M |
| Cleaning system | Manual | |
| Capacity | lt | 60 |

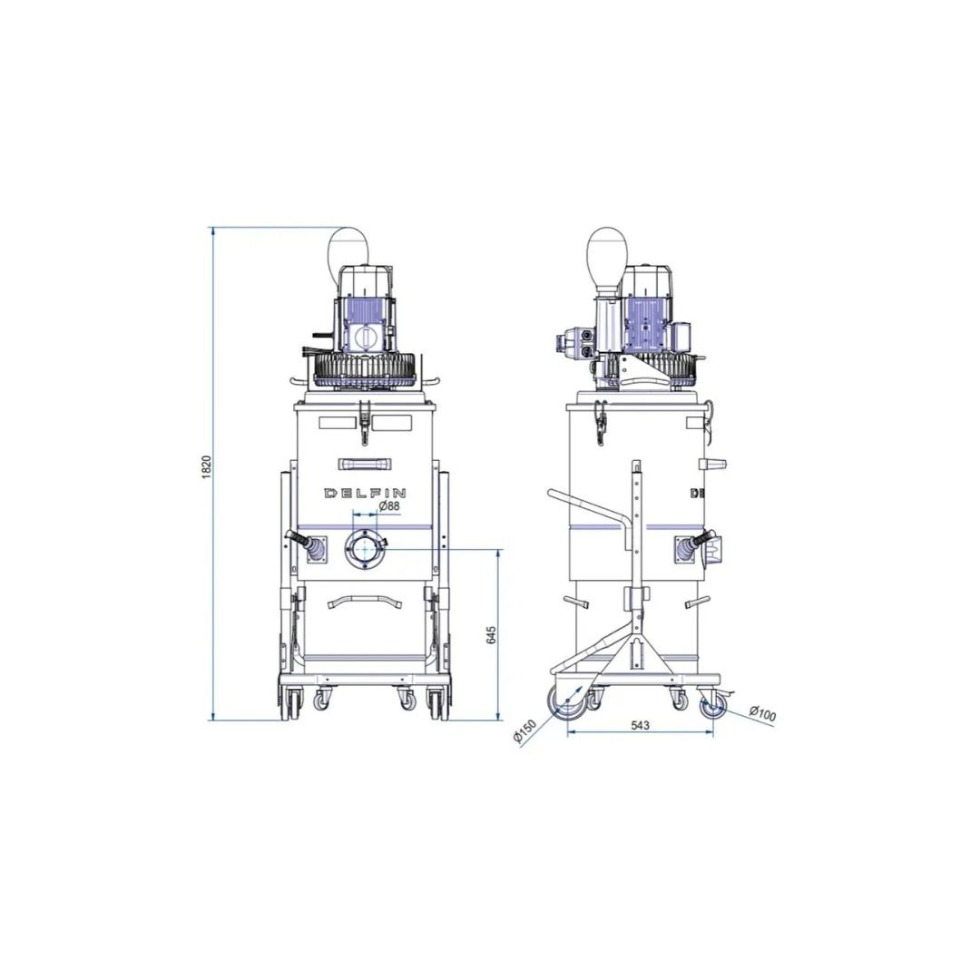

| Dimensions | cm | 79x66x170h |
| Weight | kg | 90 |
Download machine datasheet click here:
